Program Coordinator: Gerald Woolsey

Date: 08/10/06




Name of product

Procurement Lead Time

Catalog Number

Standard Waste Box (SWB)

10 weeks



Reference Documents

a)      WP 08-PT.01, Standard Waste Box Handling and Operation Manual Rev 5

b)      E-I-343, Specification for Fabrication of the Standard Waste Box, Rev 9

c)      Quality Assurance Inspection Plan for the Standard Waste Box Inventory WP 13-QA.19, Rev. 2

d)      165-F-001-W Series, Standard Waste Box Assembly, Rev V

1.0              General Description

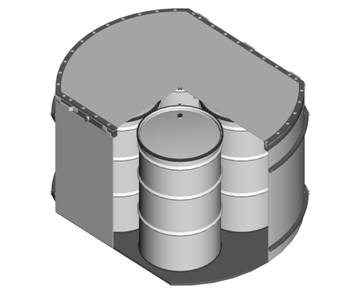

Standard Waste Box

Table 1 – SWB Weights

Component

Weight (pounds)

Maximum Gross

Nominal Tare

Net Content

SWB

4,000

640

3360

Table 2 – SWB Dimensions

Dimension

Approximate Measurement (Inches)

Inside

Outside

Height

36 9/16

36 7/8

Length

68 ¾

71

Width

52

54 ½

2.0              Container Performance Criteria

The SWB was qualified by the U.S. Department of Energy (USDOE) in 1988 as meeting the U.S. Department of Transportation (USDOT) requirements for Specification 7A Type A packagings. Qualification has been documented in the USDOE, DOE/RL-96-57 (Volumes 1 and 2), Test and Evaluation Document for the U.S. Department of Transportation Specification 7A TYPE A Packaging, under Docket Number 89-07-7A and 98-45-7A.

U.S. DOT 7A Compliance Documents -

49 CFR §173.465, Type A Packaging Tests

3.0              Quality Assurance

The Seller's C of C shall be signed by an officer of the Sellers' Organization, certifying the conformance of the supplied items to the requirements of this specification (including contract drawings). The Certificate of Compliance/Conformance (C of C) shall be traceable to the serial number(s) of the component(s).

4.0              Suggested Manufacturers –specified in the BOA
