Name of product

Procurement Lead Time

Catalog Number

Ten-Drum Overpack (TDOP)

10 weeks



Reference Documents

a) WP 08-PT.02, Ten-Drum Overpack Handling and Operation Manual, Rev 4

b) E-I-430, Specification for Fabrication of the Ten Drum Overpack, Rev 7

c) WP 13-QA.13, Quality Assurance Inspection Plan for the Ten- Drum Overpack Inventory , Rev. 2

d) 165-F-010-W Series, TRUPACT-II Ten-Drum Overpacck Assembly, Rev E

1.0              General Description

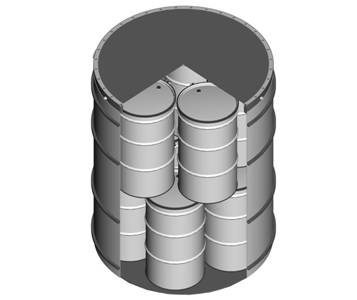

Ten-Drum Overpack

Table 1 – TDOP Weights

Component

Weight (pounds)

Maximum Gross

Approximate Empty

Shipping Content

TDOP

6,700

1,700

5,000

Table 2 – TDOP Dimensions

Dimension

Approximate Measurement (Inches)

Inside

Outside

Height

72 5/8

73 1/8

Diameter

68 ¾

71 ¼

2.0              Container Performance Criteria

The TDOP was qualified by the U.S. Department of Energy (USDOE) in 1993 as meeting the U.S. Department of Transportation (USDOT) requirements for Specification 7A Type A packagings.Qualification has been documented in the USDOE, DOE/RL-96-57 (Volumes 1 and 2), Test and Evaluation Document for the U.S. Department of Transportation Specification 7A TYPE A Packaging, under Docket Number 90-16-7A.

U.S. DOT 7A Compliance Documents -

49 CFR §173.465, Type A Packaging Tests

3.0              Quality Assurance

The Seller’s C of C shall be signed by an officer of the Sellers' Organization, certifying the conformance of the supplied items to the requirements of this specification (including contract drawings The Certificate of Compliance/Conformance (C of C) shall be traceable to the serial number(s) of the component(s).

4.0              Suggested Manufacturers –specified in the BOA
